재질 High Quality Polyamide6 적용온도범위 -40。C to + 105。C 순간최대온도 up to +150。C 자기소화성 UL94-HB, UL94-Vo 색상 검정색, 회색 적용 Connector for control box radio box or cables from electric machine.
품번(Order No.) 나사규격 치수(Dimensions in mm) L(mm) S(mm) Black Gray MIN MAX FCGL-G10B FCGL-G10G G1/2" 3.5 6.5 8 20.9 FCGL-G12B FCGL-G12G G1/2" 4.0 8.0 8 20.9 FCGL-G16B FCGL-G16G G1/2" 7.0 12.5 8 20.9
품번(Order No.) 나사규격 치수(Dimensions in mm) L(mm) S(mm) Black Gray MIN MAX FCGL-P09B FCGL-P09G Pg9 3.5 6.5 8 15.2 FCGL-P092B FCGL-P092G Pg9 4.0 8.0 8 15.2 FCGL-P11B FCGL-P11G Pg11 4.0 8.0 8 18.6 FCGL-P132B FCGL-P132G Pg13.5 4.0 8.0 8 20.4 FCGL-P162B FCGL-P162G Pg16 4.0 8.0 8 22.5 FCGL-P116B FCGL-P116G Pg11 7.0 12.5 8 18.6 FCGL-P13B FCGL-P13G Pg13.5 7.0 12.5 8 20.4 FCGL-P16B FCGL-P16G Pg16 7.0 12.5 8 22.5
품번(Order No.) 나사규격 치수(Dimensions in mm) L(mm) S(mm) Black Gray MIN MAX FCGL-M10B FCGL-M10B M12 1.5 3.5 6.5 8 12 FCGL-M120B FCGL-M120B M16 1.5 3.5 6.5 8 16 FCGL-M102B FCGL-M102B M12 1.5 4.0 8.0 8 12 FCGL-M12B FCGL-M12B M16 1.5 4.0 8.0 8 16 FCGL-M162B FCGL-M162B M20 1.5 4.0 8.0 8 20 FCGL-M126B FCGL-M126B M16 1.5 7.0 12.5 8 16 FCGL-M16B FCGL-M16B M20 1.5 7.0 12.5 8 20 FCGL-M216B FCGL-M216B M25 1.5 7.0 12.5 8 25
제품소개

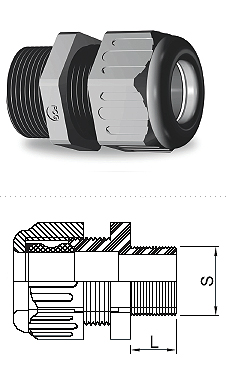

FCGL Type
재질
