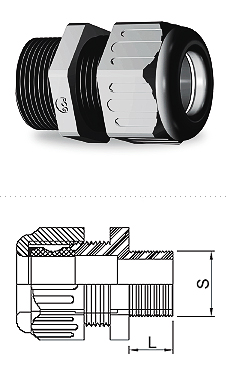

 FCG Tpye |
 재질 | 고품질 폴리아미드6 | | 방수등급 | IP 68(EN 60529) | | 적용온도범위 | -40。C to + 105。C | | 순간최대온도 | +150。C | | 자기소화성 | UL94-HB, UL94-Vo
Free of Halogen Phosphorous and cadmium | | 색상 | 검정색, 회색 | | 적용 | 분전함, 제어함, 통신함 또는 각종 전기 기 기로 부터 케이블을 인출할때 사용하 는 커 넥터. 방수, 방진, 방유구조가 확실하고 내 절연, 내충격 및 난연성이 뛰어난 커넥터 |
|
|
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
PF |
Cable Dia/mm |
L
mm |
S
mm |
| Black |
Gray |
Min |
Max |
| FCG-G10B |
FCG-G10G |
G1/2" |
3.5 |
6.5 |
15 |
20.9 |
| FCG-G12B |
FCG-G12G |
G1/2" |
4.0 |
8.0 |
15 |
20.9 |
| FCG-G16B |
FCG-G16G |
G1/2" |
7.0 |
12.5 |
15 |
20.9 |
| FCG-G1622B |
FCG-G1622G |
G3/4" |
12 |
18 |
15 |
20.9 |
| FCG-G22B |
FCG-G22G |
G3/4" |
12 |
18 |
15 |
26.4 |
| FCG-G228B |
FCG-G228G |
G3/4" |
18 |
26 |
15 |
26.4 |
| FCG-G28B |
FCG-G28G |
G1" |
18 |
26 |
15 |
33.2 |
| FCG-G36B |
FCG-G36G |
G1 1/4" |
22 |
33 |
17 |
41.9 |
| FCG-G368B |
FCG-G368G |
G1 1/4" |
30 |
38 |
17 |
41.9 |
| FCG-G48B |
FCG-G48G |
G2" |
30 |
38 |
17 |
59.6 |
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
Pg |
Cable Dia/mm |
L
mm |
S
mm |
| Black |
Gray |
Min |
Max |
| FCG-P07B |
FCG-P07G |
Pg07 |
3.5 |
6.5 |
15 |
12.5 |
| FCG-P09B |
FCG-P09G |
Pg09 |
3.5 |
6.5 |
15 |
15.2 |
| FCG-P072B |
FCG-P072G |
Pg07 |
4.0 |
8.0 |
15 |
12.5 |
| FCG-P092B |
FCG-P092G |
Pg09 |
4.0 |
8.0 |
15 |
15.2 |
| FCG-P11B |
FCG-P11G |
Pg11 |
4.0 |
8.0 |
15 |
18.6 |
| FCG-P132B |
FCG-P132G |
Pg13.5 |
4.0 |
8.0 |
15 |
20.4 |
| FCG-P162B |
FCG-P162G |
Pg16 |
4.0 |
8.0 |
15 |
22.5 |
| FCG-P096B |
FCG-P096G |
Pg09 |
7.0 |
12.5 |
15 |
15.2 |
| FCG-P116B |
FCG-P116G |
Pg11 |
7.0 |
12.5 |
15 |
18.6 |
| FCG-P13B |
FCG-P13G |
Pg13.5 |
7.0 |
12.5 |
15 |
20.4 |
| FCG-P16B |
FCG-P16G |
Pg16 |
7.0 |
12.5 |
15 |
22.5 |
| FCG-P122B |
FCG-P122G |
Pg11 |
12 |
18 |
15 |
18.6 |
| FCG-P1322B |
FCG-P1322G |
Pg13.5 |
12 |
18 |
15 |
20.4 |
| FCG-P1622B |
FCG-P1622G |
Pg16 |
12 |
18 |
15 |
22.5 |
| FCG-P21B |
FCG-P21G |
Pg21 |
12 |
18 |
15 |
28.3 |
| FCG-P218B |
FCG-P218G |
Pg21 |
18 |
26 |
15 |
28.3 |
| FCG-P29B |
FCG-P29G |
Pg29 |
18 |
26 |
15 |
37 |
| FCG-P36B |
FCG-P36G |
Pg36 |
22 |
33 |
17 |
47 |
| FCG-P368B |
FCG-P368G |
Pg36 |
30 |
38 |
17 |
47 |
| FCG-P48B |
FCG-P48G |
Pg48 |
30 |
38 |
17 |
59.3 |
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
M |
Cable Dia/mm |
L
mm |
S
mm |
| Black |
Gray |
Min |
Max |
| FCG-M10B |
FCG-M10G |
M12 * 1.5 |
3.5 |
6.5 |
15 |
12 |
| FCG-M120B |
FCG-M120G |
M16 * 1.5 |
3.5 |
6.5 |
15 |
16 |
| FCG-M102B |
FCG-M102G |
M12 * 1.5 |
4.0 |
8.0 |
15 |
12 |
| FCG-M12B |
FCG-M12G |
M16* 1.5 |
4.0 |
8.0 |
15 |
16 |
| FCG-M162B |
FCG-M162G |
M20 * 1.5 |
4.0 |
8.0 |
15 |
20 |
| FCG-M126B |
FCG-M126G |
M16 * 1.5 |
7.0 |
12.5 |
15 |
16 |
| FCG-M16B |
FCG-M16G |
M20 * 1.5 |
7.0 |
12.5 |
15 |
20 |
| FCG-M1622B |
FCG-M1622G |
M20 * 1.5 |
12 |
18 |
15 |
20 |
| FCG-M22B |
FCG-M22G |
M25 * 1.5 |
12 |
18 |
15 |
25 |
| FCG-M228B |
FCG-M228G |
M25 * 1.5 |
18 |
26 |
15 |
25 |
| FCG-M28B |
FCG-M28G |
M32 * 1.5 |
18 |
26 |
15 |
32 |
| FCG-M36B |
FCG-M36G |
M40 * 1.5 |
22 |
33 |
17 |
40 |
| FCG-M368B |
FCG-M368G |
M40 * 1.5 |
30 |
38 |
17 |
40 |
| FCG-M48B |
FCG-M48G |
M50 * 1.5 |
30 |
38 |
17 |
50 |
|
|
|
|
|
|
