 TACL |
 재질 |
고품질 폴리아미드6 |
| 방수등급 |
IP 67(EN 60529) |
| 적용온도범위 |
-40℃ + 105℃ |
| 순간최대온도 |
+ 150℃ |
| 자기소화성 |
UL94-HB, UL94-Vo
Free of Halogen Phosphorous and cadmium |
| 색상 |
검정색, 회색 |
| 적용 |
공작기계, 산업기계, 자동화기계, 조선소, 전동차 등 기계의 리미트스위치에 결합하기 위한 전용커넥터. | |
|
|
|
|
|
 |
품번(Order No.) |
나사규격
(Thread)
PF |

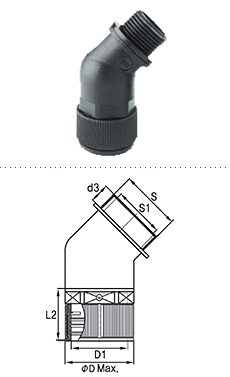

치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
D |
D₁ |
L₁ |
L₂ |
S1 |
S |
| TACL-G10B |
TACL-G10G |
G1/2" |
21 |
14 |
8 |
37 |
15.2 |
20.9 |
10 |
| TACL-G12B |
TACL-G12G |
G1/2" |
25 |
17 |
8 |
44 |
15.2 |
20.9 |
12 |
| TACL-G16B |
TACL-G16G |
G1/2" |
30 |
22 |
8 |
48 |
15.2 |
20.9 |
16 |
|
|
|
|
|
품번(Order No.) |
나사규격
(Thread)
Pg |
치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
D |
D₁ |
L₁ |
L₂ |
S1 |
S |
| TACL-P09B |
TACL-P09G |
Pg9 |
21 |
14 |
8 |
37 |
10.6 |
15.2 |
10 |
| TACL-P11B |
TACL-P11G |
Pg11 |
25 |
17 |
8 |
37 |
13.7 |
18.6 |
12 |
| TACL-P136B |
TACL-P136G |
Pg13.5 |
30 |
22 |
8 |
48 |
15.0 |
20.4 |
16 |
| TACL-P16B |
TACL-P16G |
Pg16 |
30 |
22 |
8 |
48 |
17.5 |
22.5 |
16 |
|
|
|
|
|
품번(Order No.) |
나사규격
(Thread)
Metric |
치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
D |
D₁ |
L₁ |
L₂ |
S1 |
S |
| TACL-M10B |
TACL-M10G |
M12 x 1.5 |
21 |
14 |
8 |
37 |
8.7 |
12.0 |
10 |
| TACL-M12B |
TACL-M12G |
M16 x 1.5 |
25 |
17 |
8 |
44 |
12.6 |
16.0 |
12 |
| TACL-M16B |
TACL-M16G |
M20 x 1.5 |
30 |
22 |
8 |
48 |
15.2 |
20.0 |
16 |
|
|
|
|
|
|
