 TNCCL |
 재질 |
고품질 폴리아미드6 |
| 방수등급 |
IP 68(EN 60529) |
| 적용온도범위 |
-40。C to + 105。C |
| 순간최대온도 |
+150。C |
| 자기소화성 |
UL94-HB, UL94-Vo
Free of Halogen Phosphorous and cadmium |
| 색상 |
검정색, 회색 |
| 적용 |

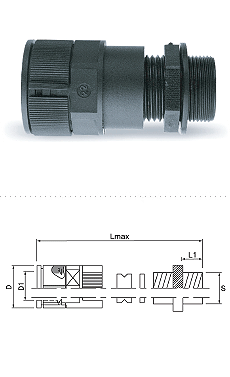

공작기계, 산업기계, 자동화기계, 조선소, 전동차 등 기계의 진동으로 발생되는 케이블의 단선을 방지하기 위해 사용되는 커넥터. |
|
|
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
PF |
치수(Dimensions in mm) |
적용전선관
(For tube size) |
허용규격
(applicable cable) |
| Black |
Gray |
D |
D₁ |
L |
L₁ |
S |
| TNCCL-G10B |
TNCCL-G10G |
G1/2" |
21 |
14 |
43 |
8 |
20.9 |
10 |
3.5~6.5 |
| TNCCL-G12B |
TNCCL-G12G |
G1/2" |
25 |
17 |
43 |
8 |
20.9 |
12 |
4~8 |
| TNCCL-G16B |
TNCCL-G16G |
G1/2" |
30 |
22 |
45 |
8 |
20.9 |
16 |
7~12.5 |
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
Pg |
치수(Dimensions in mm) |
적용전선관
(For tube size) |
허용규격
(applicable cable) |
| Black |
Gray |
D |
D₁ |
L |
L₁ |
S |
| TNCCL-P09B |
TNCCL-P09G |
Pg09 |
21 |
14 |
43 |
8 |
15.2 |
10 |
3.5~6.5 |
| TNCCL-P092B |
TNCCL-P092G |
Pg09 |
25 |
17 |
43 |
8 |
15.2 |
12 |
4~8 |
| TNCCL-P11B |
TNCCL-P11G |
Pg11 |
25 |
17 |
43 |
8 |
18.6 |
12 |
4~8 |
| TNCCL-P132B |
TNCCL-P132G |
Pg13.5 |
25 |
17 |
43 |
8 |
20.4 |
12 |
4~8 |
| TNCCL-P162B |
TNCCL-P162G |
Pg16 |
25 |
17 |
43 |
8 |
22.5 |
12 |
4~8 |
| TNCCL-P116B |
TNCCL-P116G |
Pg11 |
30 |
22 |
45 |
8 |
18.6 |
16 |
7~12.5 |
| TNCCL-P13B |
TNCCL-P13G |
Pg13.5 |
30 |
22 |
45 |
8 |
20.4 |
16 |
7~12.5 |
| TNCCL-P16B |
TNCCL-P16G |
Pg16 |
30 |
22 |
45 |
8 |
22.5 |
16 |
7~12.5 |
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
Metric |
치수(Dimensions in mm) |
적용전선관
(For tube size) |
허용규격
(applicable cable) |
| Black |
Gray |
D |
D₁ |
L |
L₁ |
S |
| TNCCL-M10B |
TNCCL-M10G |
M12 x 1.5 |
21 |
14 |
43 |
8 |
12 |
10 |
3.5~6.5 |
| TNCCL-M120B |
TNCCL-M120G |
M16 x 1.5 |
21 |
14 |
43 |
8 |
16 |
10 |
3.5~6.5 |
| TNCCL-M102B |
TNCCL-M102G |
M12 x 1.5 |
21 |
14 |
43 |
8 |
12 |
10 |
4~8 |
| TNCCL-M12B |
TNCCL-M12G |
M16 x 1.5 |
25 |
17 |
43 |
8 |
16 |
12 |
4~8 |
| TNCCL-M162B |
TNCCL-M162G |
M20 x 1.5 |
25 |
17 |
43 |
8 |
20 |
12 |
4~8 |
| TNCCL-M126B |
TNCCL-M126G |
M16 x 1.5 |
30 |
22 |
45 |
8 |
16 |
16 |
7~12.5 |
| TNCCL-M16B |
TNCCL-M16G |
M20 x 1.5 |
30 |
22 |
45 |
8 |
20 |
16 |
7~12.5 |
| TNCCL-M216B |
TNCCL-M216G |
M25 x 1.5 |
30 |
22 |
45 |
8 |
25 |
16 |
7~12.5 |
|
|
|
|
|
|
