 TWC Type |
 재질 |
고품질 폴리아미드6 |
| 방수등급 |
IP 67(EN 60529) |
| 적용온도범위 |
-40℃ + 105℃ |
| 순간최대온도 |
+ 150℃ |
| 자기소화성 |
UL94-HB, UL94-Vo
Free of Halogen Phosphorous and cadmium |
| 색상 |
검정색, 회색 |
| 적용 |
공작기계, 산업기계, 자동화기계, 조선소, 전동차 등 컨트롤 박스에 결합하기 위한 장소에 사용됨. |
| 국제인증 |
 | |
|
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
PF |

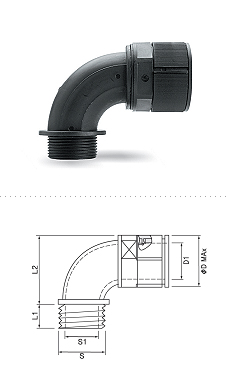

치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
L1 |
L2 |
D |
D1 |
S1 |
S |
| TWC-G10B |
TWC-G10G |
G1/2" |
13 |
28 |
21 |
14 |
15.2 |
20.9 |
10 |
| TWC-G12B |
TWC-G12G |
G1/2" |
13 |
36 |
25 |
17 |
15.2 |
20.9 |
12 |
| TWC-G16B |
TWC-G16G |
G1/2" |
13 |
41 |
30 |
22 |
15.2 |
20.9 |
16 |
| TWC-G22B |
TWC-G22G |
G3/4" |
15 |
50 |
41 |
30 |
19.4 |
26.4 |
22 |
| TWC-G28B |
TWC-G28G |
G1" |
15 |
60 |
47 |
36 |
26.2 |
33.2 |
28 |
| TWC-G368B |
TWC-G368G |
G1 1/4" |
15 |
60 |
47 |
36 |
34.5 |
41.9 |
28 |
| TWC-G36B |
TWC-G36G |
G1 1/4" |
19 |
76 |
56 |
44 |
34.5 |
41.9 |
36 |
| TWC-G42B |
TWC-G42G |
G1 1/2" |
19 |
91 |
68 |
56 |
40.8 |
47.8 |
48 |
| TWC-G48B |
TWC-G48G |
G2" |
19 |
91 |
68 |
56 |
49.8 |
59.6 |
48 |
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
Metric |
치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
L1 |
L2 |
D |
D1 |
S1 |
S |
| TWC-M107B |
TWC-M107G |
M12 x 1.5 |
11 |
20 |
15.3 |
10.5 |
8.7 |
12.0 |
7 |
| TWC-M10B |
TWC-M10G |
M12 x 1.5 |
13 |
28 |
21 |
14 |
8.7 |
12.0 |
10 |
| TWC-M12B |
TWC-M12G |
M16 x 1.5 |
13 |
36 |
25 |
17 |
12.6 |
16.0 |
12 |
| TWC-M16B |
TWC-M16G |
M20 x 1.5 |
13 |
41 |
30 |
22 |
15.2 |
20.0 |
16 |
| TWC-M22B |
TWC-M22G |
M25 x 1.5 |
15 |
50 |
41 |
30 |
19.4 |
25.0 |
22 |
| TWC-M28B |
TWC-M28G |
M32 x 1.5 |
15 |
60 |
47 |
36 |
26.2 |
32.0 |
28 |
| TWC-M36B |
TWC-M36G |
M40 x 1.5 |
19 |
76 |
56 |
44 |
34.5 |
40.0 |
36 |
| TWC-M48B |
TWC-M48G |
M50 x 1.5 |
19 |
91 |
68 |
56 |
44.0 |
50.0 |
48 |
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
Pg |
치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
L1 |
L2 |
D |
D1 |
S1 |
S |
| TWC-P077B |
TWC-P077G |
Pg7 |
11 |
20 |
15.3 |
10.5 |
9.5 |
12.5 |
7 |
| TWC-P097B |
TWC-P097G |
Pg9 |
11 |
20 |
15.3 |
10.5 |
10.6 |
15.2 |
7 |
| TWC-P09B |
TWC-P09G |
Pg9 |
13 |
28 |
21 |
14 |
10.6 |
15.2 |
10 |
| TWC-P110B |
TWC-P110G |
Pg11 |
13 |
28 |
21 |
14 |
13.7 |
18.6 |
10 |
| TWC-P130B |
TWC-P130G |
Pg13.5 |
13 |
28 |
21 |
14 |
15.0 |
20.4 |
10 |
| TWC-P11B |
TWC-P11G |
Pg11 |
13 |
36 |
25 |
17 |
13.7 |
18.6 |
12 |
| TWC-P132B |
TWC-P132G |
Pg13.5 |
13 |
36 |
25 |
17 |
15.0 |
20.4 |
12 |
| TWC-P162B |
TWC-P162G |
Pg16 |
13 |
36 |
25 |
17 |
17.5 |
22.5 |
12 |
| TWC-P136B |
TWC-P136G |
Pg13.5 |
13 |
41 |
30 |
22 |
15.0 |
20.4 |
16 |
| TWC-P16B |
TWC-P16G |
Pg16 |
13 |
41 |
30 |
22 |
17.5 |
22.5 |
16 |
| TWC-P163B |
TWC-P163G |
Pg16 |
15 |
50 |
41 |
30 |
17.5 |
22.5 |
22 |
| TWC-P21B |
TWC-P21G |
Pg21 |
15 |
50 |
41 |
30 |
21.7 |
28.3 |
22 |
| TWC-P29B |
TWC-P29G |
Pg29 |
15 |
60 |
47 |
36 |
30.5 |
37 |
28 |
| TWC-P36B |
TWC-P36G |
Pg36 |
19 |
76 |
56 |
44 |
40.1 |
47.0 |
36 |
| TWC-P48B |
TWC-P48G |
Pg48 |
19 |
91 |
68 |
56 |
51.8 |
59.3 |
48 |
|
|
|
|
|
|
