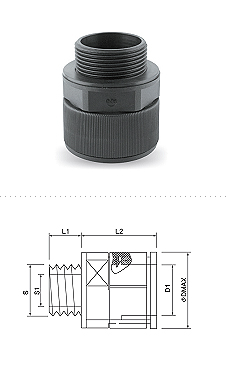

 TNC Type |
 재질 |
고품질 폴리아미드6 |
| 방수등급 |
IP 67(EN 60529) |
| 적용온도범위 |
-40℃ + 105℃ |
| 순간최대온도 |
+ 150℃ |
| 자기소화성 |
UL94-HB, UL94-Vo
Free of Halogen Phosphorous and cadmium |
| 색상 |
검정색, 회색 |
| 적용 |
공작기계, 산업기계, 자동화기계, 조선소, 전동차 등 컨트롤 박스에 결합하기 위한 장소에 사용됨. |
| 국제인증 |
 | |
|
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
PF |
치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
L1 |
L2 |
D |
D1 |
S1 |
S |
| TNC-G07B |
TNC-G07G |
G1/4" |
13 |
19.6 |
15.3 |
10.5 |
9.5 |
13 |
07 |
| TNC-G10B |
TNC-G10G |
G1/2" |
13 |
27 |
23 |
13 |
15.2 |
20.9 |
10 |
| TNC-G12B |
TNC-G12G |
G1/2" |
13 |
27 |
25 |
17 |
15.2 |
20.9 |
12 |
| TNC-G16B |
TNC-G16G |
G1/2" |
13 |
28 |
30 |
22 |
15.2 |
20.9 |
16 |
| TNC-G22B |
TNC-G22G |
G3/4" |
15 |
34 |
41 |
30 |
19.4 |
26.4 |
22 |
| TNC-G28B |
TNC-G28G |
G1" |
15 |
38 |
47 |
36 |
26.2 |
33.2 |
28 |
| TNC-G36B |
TNC-G36G |
G1 1/4 " |
19 |
46 |
56 |
44 |
34.5 |
41.9 |
36 |
| TNC-G42B |
TNC-G42G |
G1 1/2" |
21 |
51 |
68 |
55 |
40.8 |
47.8 |
48 |
| TNC-G48B |
TNC-G48G |
G2" |
21 |
51 |
68 |
55 |
49.8 |
59.6 |
48 |
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
Metric |
치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
L1 |
L2 |
D |
D1 |
S1 |
S |
| TNC-M107B |
TNC-M107G |
M12 x 1.5 |
11 |
22 |
15.3 |
10.5 |
8.7 |
12.0 |
7 |
| TNC-M127B |
TNC-M127G |
M16 x 1.5 |
11 |
22 |
15.3 |
10.5 |
12.6 |
16.0 |
7 |
| TNC-M167B |
TNC-M167G |
M20 x 1.5 |
11 |
22 |
15.3 |
10.5 |
17.3 |
20.0 |
7 |
| TNC-M10B |
TNC-M10G |
M12 x 1.5 |
13 |
27 |
23 |
13 |
8.7 |
12.0 |
10 |
| TNC-M120B |
TNC-M120G |
M16 x 1.5 |
13 |
27 |
23 |
13 |
12.6 |
16.0 |
10 |
| TNC-M20B |
TNC-M20G |
M20 x 1.5 |
13 |
27 |
23 |
13 |
15.2 |
20.0 |
10 |
| TNC-M102B |
TNC-M102G |
M12 x 1.5 |
13 |
27 |
25 |
17 |
8.7 |
12.0 |
12 |
| TNC-M12B |
TNC-M12G |
M16 x 1.5 |
13 |
27 |
25 |
17 |
12.6 |
16.0 |
12 |
| TNC-M202B |
TNC-M202G |
M20 x 1.5 |
13 |
27 |
25 |
17 |
15.2 |
20.0 |
12 |
| TNC-M126B |
TNC-M126G |
M16 x 1.5 |
13 |
28 |
30 |
22 |
12.6 |
16.0 |
16 |
| TNC-M16B |
TNC-M16G |
M20 x 1.5 |
13 |
28 |
30 |
22 |
15.2 |
20.0 |
16 |
| TNC-M226B |
TNC-M226G |
M25 x 1.5 |
13 |
28 |
30 |
22 |
19.4 |
25.0 |
16 |
| TNC-M22B |
TNC-M22G |
M25 x 1.5 |
15 |
34 |
41 |
30 |
19.4 |
25.0 |
22 |
| TNC-M3222B |
TNC-M3222G |
M32 x 1.5 |
15 |
34 |
41 |
30 |
27 |
32.0 |
22 |
| TNC-M28B |
TNC-M28G |
M32 x 1.5 |
15 |
38 |
47 |
36 |
26.2 |
32.0 |
28 |
| TNC-M4028B |
TNC-M4028G |
M40 x 1.5 |
15 |
38 |
47 |
36 |
34 |
40.0 |
28 |
| TNC-M36B |
TNC-M36G |
M40 x 1.5 |
19 |
46 |
56 |
44 |
34.5 |
40.0 |
36 |
| TNC-M5036B |
TNC-M5036G |
M50 x 1.5 |
19 |
46 |
56 |
44 |
44 |
50.0 |
36 |
| TNC-M48B |
TNC-M48G |
M50 x 1.5 |
21 |
51 |
68 |
55 |
44 |
50.0 |
48 |
| TNC-M6348B |
TNC-M6348G |
M63 x 1.5 |
21 |
51 |
68 |
55 |
56.7 |
63.0 |
48 |
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
Pg |
치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
L1 |
L2 |
D |
D1 |
S1 |
S |
| TNC-P077B |
TNC-P077G |
Pg7 |
11 |
22 |
15.3 |
10.5 |
9.5 |
12.5 |
7 |
| TNC-P097B |
TNC-P097G |
Pg9 |
13 |
22 |
15.3 |
10.5 |
10.6 |
15.2 |
7 |
| TNC-P117B |
TNC-P117G |
Pg11 |
13 |
22 |
15.3 |
10.5 |
13.7 |
18.6 |
7 |
| TNC-P137B |
TNC-P137G |
Pg13.5 |
13 |
22 |
15.3 |
10.5 |
15.0 |
20.4 |
7 |
| TNC-P070B |
TNC-P070G |
Pg7 |
11 |
27 |
23 |
13 |
9.5 |
12.5 |
10 |
| TNC-P09B |
TNC-P09G |
Pg9 |
13 |
27 |
23 |
13 |
10.6 |
15.2 |
10 |
| TNC-P110B |
TNC-P110G |
Pg11 |
13 |
27 |
23 |
13 |
13.7 |
18.6 |
10 |
| TNC-P130B |
TNC-P130G |
Pg13.5 |
13 |
27 |
23 |
13 |
15.0 |
20.4 |
10 |
| TNC-P160B |
TNC-P160G |
Pg16 |
13 |
27 |
23 |
13 |
17.5 |
22.5 |
10 |
| TNC-P0912B |
TNC-P0912G |
Pg9 |
13 |
27 |
25 |
17 |
10.6 |
15.2 |
12 |
| TNC-P11B |
TNC-P11G |
Pg11 |
13 |
27 |
25 |
17 |
13.7 |
18.6 |
12 |
| TNC-P132B |
TNC-P132G |
Pg13.5 |
13 |
27 |
25 |
17 |
15.0 |
20.4 |
12 |
| TNC-P162B |
TNC-P162G |
Pg16 |
13 |
27 |
25 |
17 |
17.5 |
22.5 |
12 |
| TNC-P136B |
TNC-P136G |
Pg13.5 |
13 |
28 |
30 |
22 |
15.0 |
20.4 |
16 |
| TNC-P16B |
TNC-P16G |
Pg16 |
13 |
28 |
30 |
22 |
17.5 |
22.5 |
16 |
| TNC-P216B |
TNC-P216G |
Pg21 |
13 |
28 |
30 |
22 |
21.7 |
28.3 |
16 |
| TNC-P163B |
TNC-P163G |
Pg16 |
15 |
34 |
41 |
30 |
17.5 |
22.5 |
22 |
| TNC-P21B |
TNC-P21G |
Pg21 |
15 |
34 |
41 |
30 |
21.7 |
28.3 |
22 |
| TNC-P29B |
TNC-P29G |
Pg29 |
15 |
38 |
47 |
36 |
30.5 |
37.0 |
28 |
| TNC-P36B |
TNC-P36G |
Pg36 |
19 |
46 |
56 |
44 |
40.1 |
47.0 |
36 |
| TNC-P48B |
TNC-P48G |
Pg48 |
21 |
51 |
68 |
55 |
51.8 |
59.3 |
48 |
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
NPT |
치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
L1 |
L2 |
D |
D1 |
S1 |
S |
| TNC-N10B |
TNC-N10G |
NPT 1/2" |
13 |
27 |
23 |
13 |
15.2 |
21.2 |
10 |
| TNC-N12B |
TNC-N12G |
NPT 1/2" |
13 |
27 |
25 |
17 |
15.2 |
21.2 |
12 |
| TNC-N16B |
TNC-N16G |
NPT 1/2" |
13 |
28 |
30 |
22 |
15.2 |
21.2 |
16 |
| TNC-N22B |
TNC-N22G |
NPT 3/4" |
15 |
34 |
41 |
30 |
19.4 |
26.5 |
22 |
| TNC-N28B |
TNC-N28G |
NPT 1" |
15 |
40 |
47 |
36 |
26.2 |
33.2 |
28 |
|
|
|
|
|
|
