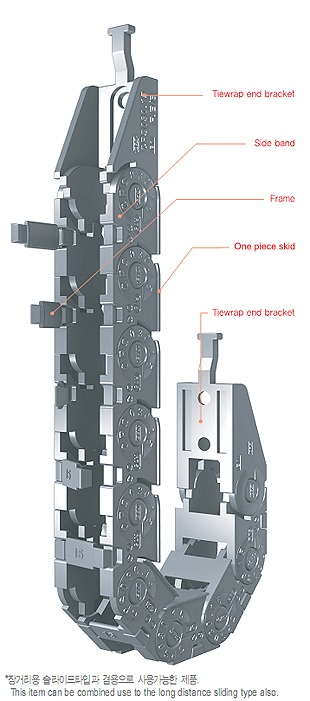

 CPS030 |
 Chain material | CPS-polyamide with glass fiber reinforced, UL94-HB | | Low Noise | 40dB (DIN EN 61672-1) | | Applications | Gantry robot, Machining center, Textile machine, Welding machine,
Feeder unit, Assembly loader Wood work machine, Fabric machine. | | Speed | 10m/sec | | Temperature | -30℃ ~ +130℃ |
| Vertical installation Lengths | Curve above = max. 1.5m
Curve below = max. 10m
Side Mounted, Unsupported = max. 0.6m |
| Load diagrams self-supporting lenght |
|
| Calculation of the chain length |  |
|
|
|
|

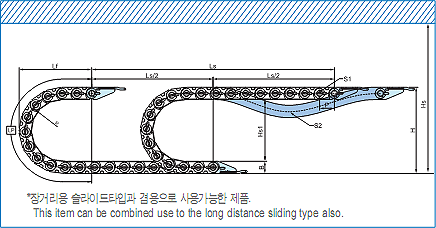

 Lay out of the CPS cable chain |
- Ls : stroke
- Lp : loof length
- Lf : loof projection
- Hs : safe space |
 |
| |
|
| |
(dimensions in mm) |
| Type CPS030 |
| Pitch P : 30 mm |
| Height B : 25 mm |
| Height H : 2R + B |
| Hs ≥ H + 30 mm |
| Hs1 ≤ -30 mm |
|
| Bending radius R |
38 |
48 |
75 |
100 |
| Lp |
240 |
271 |
356 |
434 |
| Lf |
110 |
119 |
148 |
173 |
| H |
101 |
121 |
175 |
225 | | |

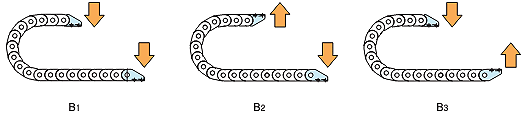

| Bracket Type |
 |

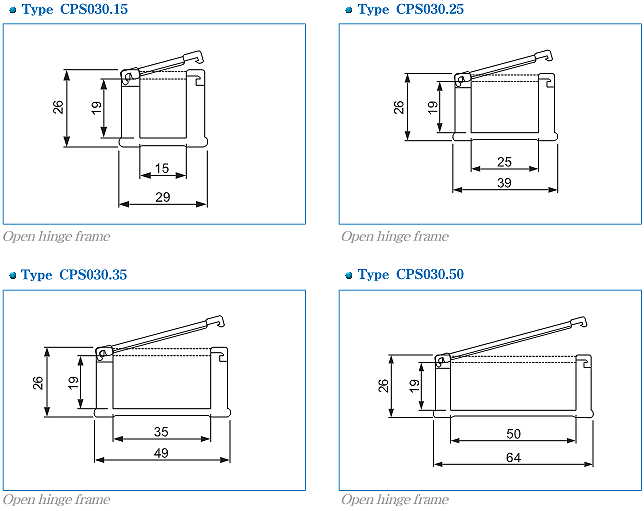

| Chain cross section |
 |
| Chain Radius, weight |
| Chain Type |
Bending Radius(R) |
Weight in kg/m |
| CPS 030.15 |
38
48
75
100 |
0.38 |
| CPS 030.25 |
0.40 |
| CPS 030.35 |
0.42 |
| CPS 030.50 |
0.44 | |

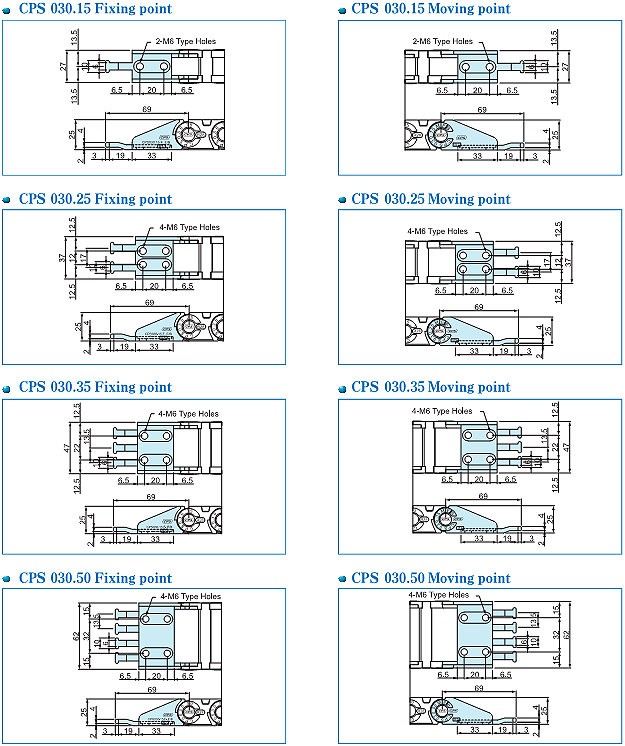

| End Bracket - Tiewrap Type |
 | |
|
|
|
