 CPS020 |
 Chain material |
CPS-polyamide with glass fiber reinforced, UL94-HB |
| Low Noise |
40dB (DIN EN 61672-1) |
| Applications |
Printing Machine
Feeder unit
Count machine
|
| Speed |
10m/sec |
| Temperature |
-30℃ ~ +130℃ |
| Vertical installation Lengths |
Curve above = max. 1.0m
Curve below = max. 5m
Side Mounted, Unsupported = max. 0.5m |

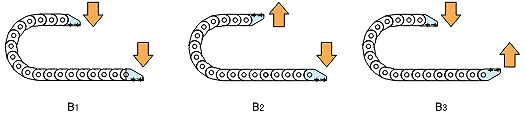

| Load diagrams self-supporting lenght |
 |

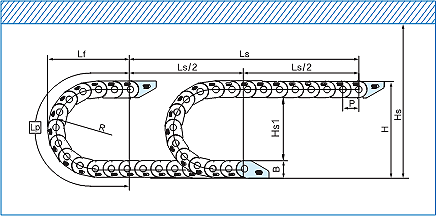

| Calculation of the chain length |
 |
|
|
|
|
 Lay out of the CPS cable chain |
- Ls : stroke
- Lp : loof length
- Lf : loof projection
- Hs : safe space |
 |
| |
|
| |
(dimensions in mm) |
| Type CPS020 |
| Pitch P : 20 mm |
| Height B : 20 mm |
| Height H : 2R + B |
| Hs ≥ H + 15 mm |
| Hs1 ≤ -15 mm |
|
| Bending radius R |
28 |
38 |
48 |
| Lp |
170 |
200 |
230 |
| Lf |
78 |
88 |
98 |
| H |
76 |
96 |
116 | | |

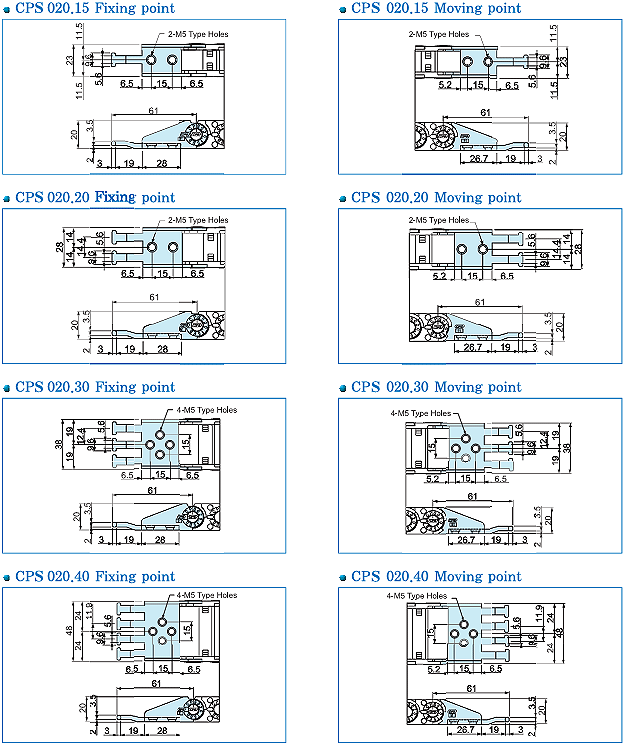

| Bracket Type |
 |

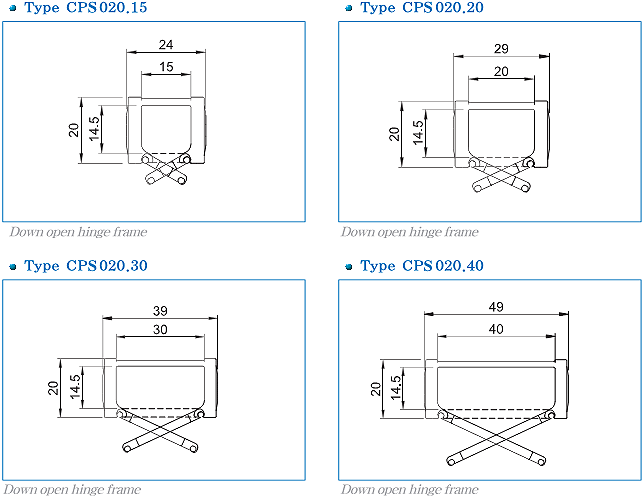

| Chain cross section |
 |
| Chain Radius, weight |
| Chain Type |
Bending Radius(R) |
Weight in kg/m |
| CPS 020.15 |
28
38
48 |
0.245 |
| CPS 020.20 |
0.260 |
| CPS 020.30 |
0.285 |
| CPS 020.40 |
0.310 | |

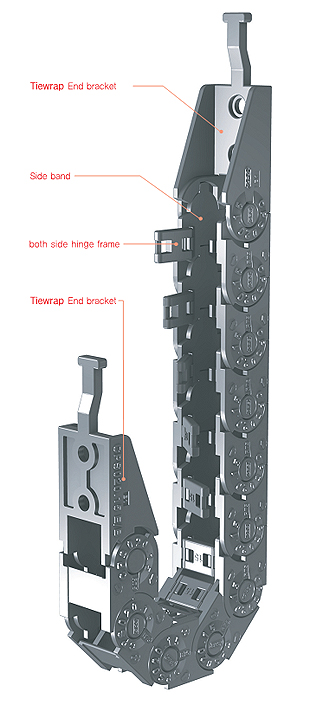

| End Bracket - Tiewrap Type |
 | |
|
|
|
